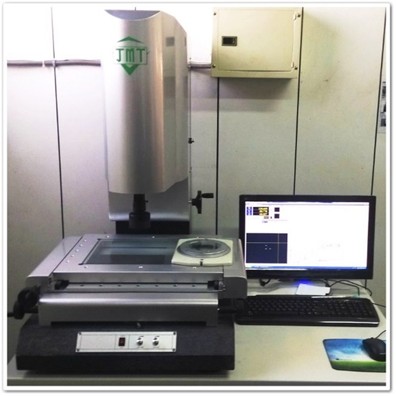

Features

1. Provide optical image measurement tools for precise measurement of points, lines, circles, arcs, rectangles, grooved holes, etc. of workpieces.
2. It has functions such as batch inspection and SPC.
3. The autofocus wheel, profile light and surface light use adjustable LED cold light sources to avoid thermal deformation of the workpiece being tested.
4. Hand-crank operation can switch rapid movement, and the front Z wheel hand shaft is provided.
5. Equipped with powerful mathematical operation analysis and image processing functions to reduce human errors and ensure the accuracy of measurement data.
6. Measuring stroke range (XYZ): 300x200x200mm, external dimensions: 1100x700x1800mm.
7. Grating scale resolution: 1.0μm.
8. X/Y/Z linear accuracy: U=(3+L/200) μm, repeatability: 3μm. Accuracy according to ISO10360-7 or ISO10360-2 specifications.

application

The image size measuring instrument can quickly detect the contours, surface dimensions, angles and positions of various complex and precision parts, especially the microscopic inspection and quality control of precision parts.
