Features

1. Measuring range XYZ: 700mm x 1000mm x 600mm.
2. Minimum display quantity Resolution: 0.0001㎜.
3. Maximum capacity Measuring Table: 880 × 1720 ㎜ (X × Y).
4. Maximum load height Max. Workpiece Height: 800 ㎜(Z).
5. Max. loading mass: 1000 kg.
6. Measurement accuracy (at 20±1℃) (1.9+3L/1000) μm (use TP200).
7. Temperature Compensation Unit.
8. Equipped with various probes, ceramic reference origin balls and stylus exchange disks.

application

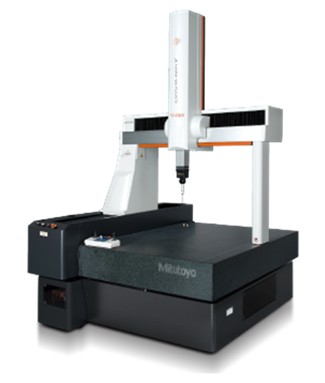

A three-dimensional coordinate measuring machine, also known as a coordinate measuring instrument, is a detector device that can move and measure in three directions. The coordinate measuring instrument provided by this equipment has the advantages of fast speed and high accuracy, and can accurately measure the shape of objects through the probe.
